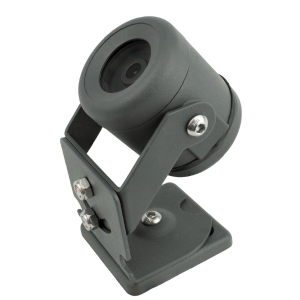

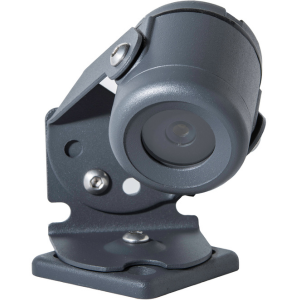

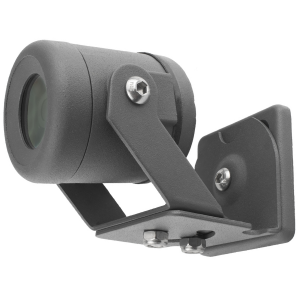

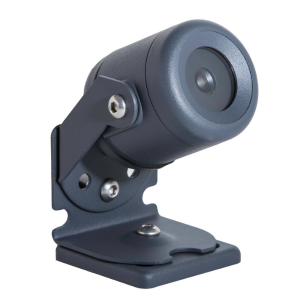

CC02 Camera
$395.00
- High Impact Camera
- 12V DC (24v AC Optional)
- Fixed 2.9mm (4.3mm, 6mm, 8mm, 12m, 16mm Optional)
- Vibration Resistant
- Titanium Alloy Housing
- Extreme Temperature Rating
- IP-68 Waterproof/Dustproof
CC02 Camera
Products
-
$1,350.00 -
$1,065.00
-
$675.00 -
$95.00 -
$730.00
Features
Features
The CC02 camera is uniquely designed to meet the rugged environmental demands of heavy industrial applications. The virtually indestructible titanium alloy housing ensures long camera life by shielding the imaging components from dust, moisture, vibration and extreme temperatures.
For heavy industry, the vibration resistance of the CC02 is unsurpassed. Vibration tests prove the camera’s ability to stand up to the stresses caused by industrial machinery. Temperature tests prove the camera’s ability to perform in both high and low temperatures without the need for a heater or fan. The specially sealed housing, which is IP-68 rated according to NEMA, prevents dust and water penetration.
The included tri-axial mounting system provides ease of installation in virtually any location.
Specifications
| SPECIFICATIONS | CC02 |
| Image Sensor | 1/3" High Resolution CCD |
| Resolution | 700 TV Lines |
| Illumination | 0.01 Lux / F1.8 |
| S/N Ratio | More than 48 dB |
| Lens | 2.9, 4.3, 6.0, 8.0, 12.0, 16.0mm avail. |
| Sync System | Internal |
| Video Output | 1Vp-p/75ohms |
| NEMA Rating | IP68 |
| Housing | Titanium Alloy with Gun Metal Grey Powder Coat |
| Bracket | Tri-Axial Mount included |
| Power | 12V DC or ( 24V AC optional) |
| Power Consumption | 300mA (Power supply included) |
| Dimensions | 2.36 x 2.75 x 4.26" |
| Operation Temp. | -76F ~ +140F (-60C ~ +60C) |
| Weight | 1.76 lbs |
Document & Download
Accessories

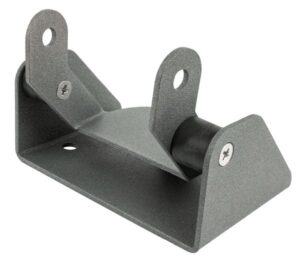

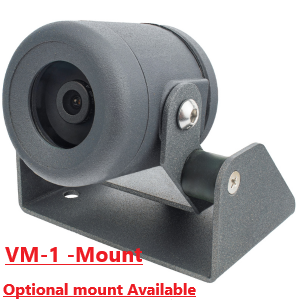

VM-1 Vibration Mount
Optional Mount for Very High Vibration Applications
Extends Camera Life
Easy To Install
Advanced Vibration Damping Design
- High Impact Camera
- 12V DC (24v AC Optional)
- Fixed 2.9mm (4.3mm, 6mm, 8mm, 12m, 16mm Optional)
- Vibration Resistant
- Titanium Alloy Housing
- Extreme Temperature Rating
- IP-68 Waterproof/Dustproof
