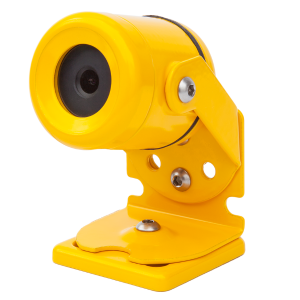

CC02 Camera -HD TVI -24v
$425.00
- High Impact Camera
- High Definition 1080P
- 24V AC (12v DC Optional)
- Fixed 2.9mm (4.3mm, 6mm, 8mm, 12m, 16mm Optional)
- Vibration Resistant
- Titanium Alloy Housing
- Extreme Temperature Rating
- IP-68 Waterproof/Dustproof
CC02 Camera -HD TVI -24v
Products
-
$1,350.00 -
$1,065.00
-
$675.00 -
$95.00 -
$730.00
Features
Features
The CC02-TVI camera is uniquely designed to meet the rugged
environmental demands of heavy industry.
The virtually indestructible titanium alloy housing ensures long camera life by shielding the imaging components from dust, moisture, vibration and extreme temperatures.
The vibration resistance of the CC02-TVI is unsurpassed. Independent vibration testing has proven the CC02- TVI's ability to stand up to the stresses caused by industrial machinery.
Specifications
| SPECIFICATIONS | CC02-TVI -24V |
| Image Sensor | 1/2.7" CMOS Progressive Scan Sensor |
| Resolution | 1080P (1920 x 1080) / 30 FPS |
| Illumination | 0.5 Lux |
| S/N Ratio | More than 40 dB (AGC Off) |
| Lens | 2.9, 4.3, 6.0, 8.0, 12.0, 16.0mm avail. |
| Sync System | Internal |
| Video Output | 1Vp-p/75ohms |
| NEMA Rating | IP68 |
| Housing | Titanium Alloy with Safety Yellow Powder Coat |
| Bracket | Tri-Axial Mount included |
| Power | 24V AC or ( 12V DC optional) |
| Power Consumption | 300mA (Power supply included) |
| Dimensions | 2.36 x 2.75 x 4.26" |
| Operation Temp. | -76F ~ +140F (-60C ~ +60C) |
| Weight | 1.76 lbs |
Document & Download
Accessories

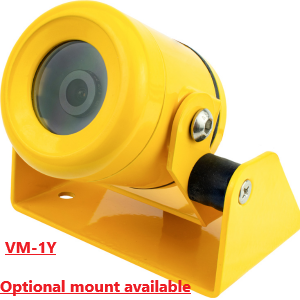

VM-1Y Vibration Mount
Optional Mount for Very High Vibration Applications
Extends Camera Life
Easy To Install
Advanced Vibration Damping Design
