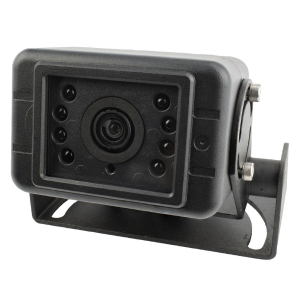

CC04-IP12MV-4
$815.00
- 12 Megapixel (3840×2880) @ 15fps
- 4mm Lens
- Quadruple Stream H.265 & H.264 & M-JPEG & JPEG
- Night Color With Super High Sensitive Sensor
CC04-IP12MV-4
Products
-
$1,350.00 -
$1,065.00
-
$675.00 -
$95.00 -
$730.00
Features
- 5 Megapixel (2592x1944) @ 30fps
- 2.85mm Lens
- Quadruple Stream H.265 & H.264 & M-JPEG & JPEG
- Night Color With Super High Sensitive Sensor
Specifications
| SPECIFICATIONS | CC04-IP5MV |
| Imaging Sensor | ½.3” 12.3MP Sony Starvis PS CMOS |
| Lens | 4mm |
| Day & Night | True Day & Night (ICR) |
| Min. Illumination | Color : 0.05 lux / B/W : 0.0005 lux (IIR ON) |
| System | 64bit RISC-V Quad Core Up to 594 MHz, NAND Flash 2 Gb / LPDDR3 4Gb |
| Compression | H.265, H.264, M-JPEG, JPEG |
| Resolution15fps | 15fps @ 12M (4:3) 3840x2880, 2592x1944, 2048x1538, 1920x1080, 1280x720, 720x480, 704x480, 640x480, 640x352, 320x240 30fps @ 8MP (16:9) 3840x2160, 2560x1440, 1920x1080, 1280x1024, 1280x720, 720x480, 704x480, 640x480, 640x352, 320x240 |
| Frame Rate | Max 12MP (3840x2880) @15 fps Max 8MP (3840x2160 @ 30 fps |
| Motion Detection | 4 Areas |
| Privacy Masking | 8 Areas |
| Smart Video | ROI |
| Video Stream | Quad Streaming, selectable : H.265 / H.264 / MJPEG, JPEG Frame rate, Bit rate, VBR / AVBR / CBR / ACBR / GOP |
| Exposure Mode | Indoor / Outdoor |
| AE Metering Mode | Spot / Center / Average / Venter Flip |
| Shutter Control | Manual (Min. /Max. Setting ) Auto |
| Max AGC Gain | 0-72 |
| Sense Up Level | Off / 1 / 2 |
| Back Light-Compensation | Enable / Disable |
| Auto Exposure | 25%-400% |
| Playback Mode | DOL WDR ( Enable / Disable) D-WDR 0-128 |
| Image Adjustment | Brightness / Contrast / Hue / Saturation / Sharpness |
| White Balance | Auto / Manual / 9 Special Condition |
| 3DNR | 0-11 |
| Day & Night Control | Color / Black & White / Auto Night / Color (B/W, 10 ,20, 30, 40, 50) |
| Image Direction | Vertical Flip / Horizontal Flip / Corridor Mode |
| Programing Interface | SDK, ONVIF Profile S, T |
| Illuminator | 8 IR LED’s Max. Distance 32.8 ft (10 Meter) |
| Power Supply | SMPS, DC12V 1Amp & PoE IEEE 802.3af |
| Power Consumption | Max. 4.0W |
| Operating Temp. | -20C ~ + 60C, 10% ~ 90% RH |
| Dimension | 80 (W) X 70 (D) X 54 (H) mm |
| Weight | About 370g without Bracket |
| Approval | KC, CE, FCC, RoHS, IP67 |
Document & Download
- 12 Megapixel (3840×2880) @ 15fps
- 4mm Lens
- Quadruple Stream H.265 & H.264 & M-JPEG & JPEG
- Night Color With Super High Sensitive Sensor
